Size: 20*5.8cm
Origin : China
Hign-concerned Chemical : None
Model Number : GD-H400M GD-Y400M

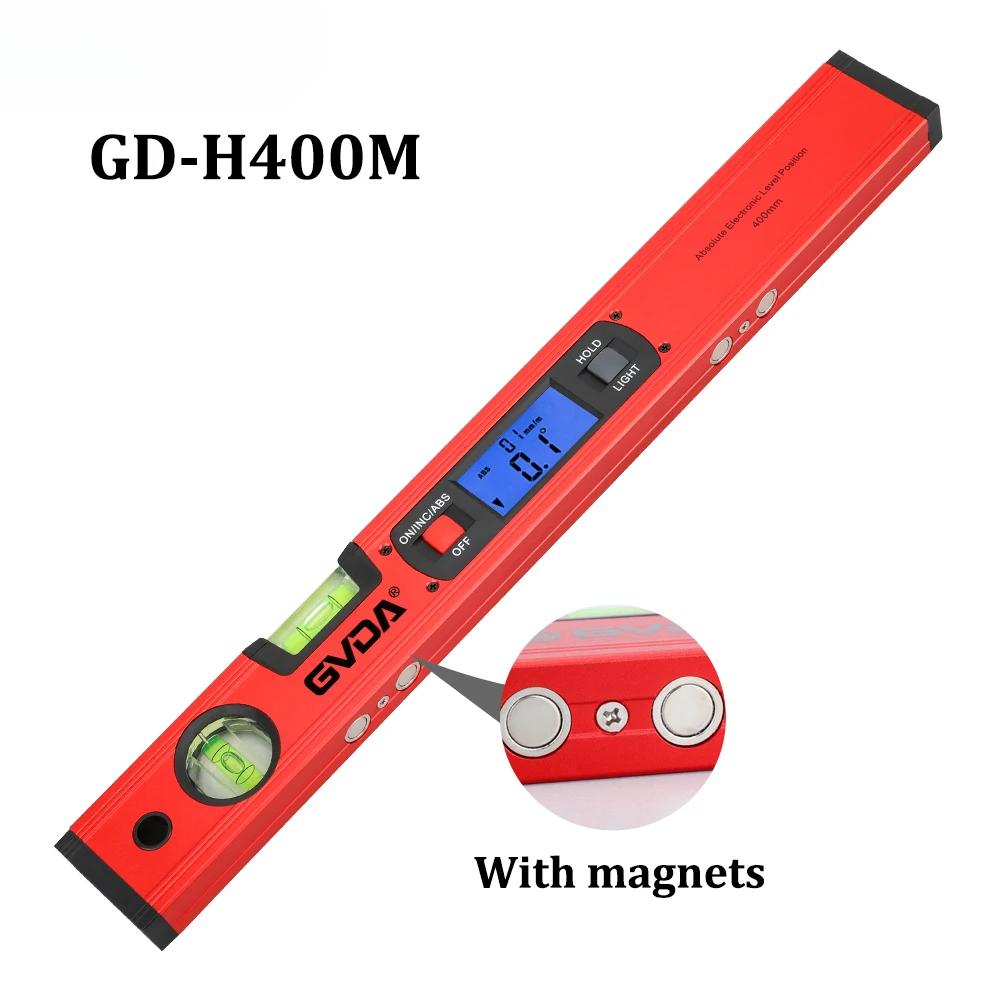

GVDA Model : GD-H400M
Certification : CE,FCC

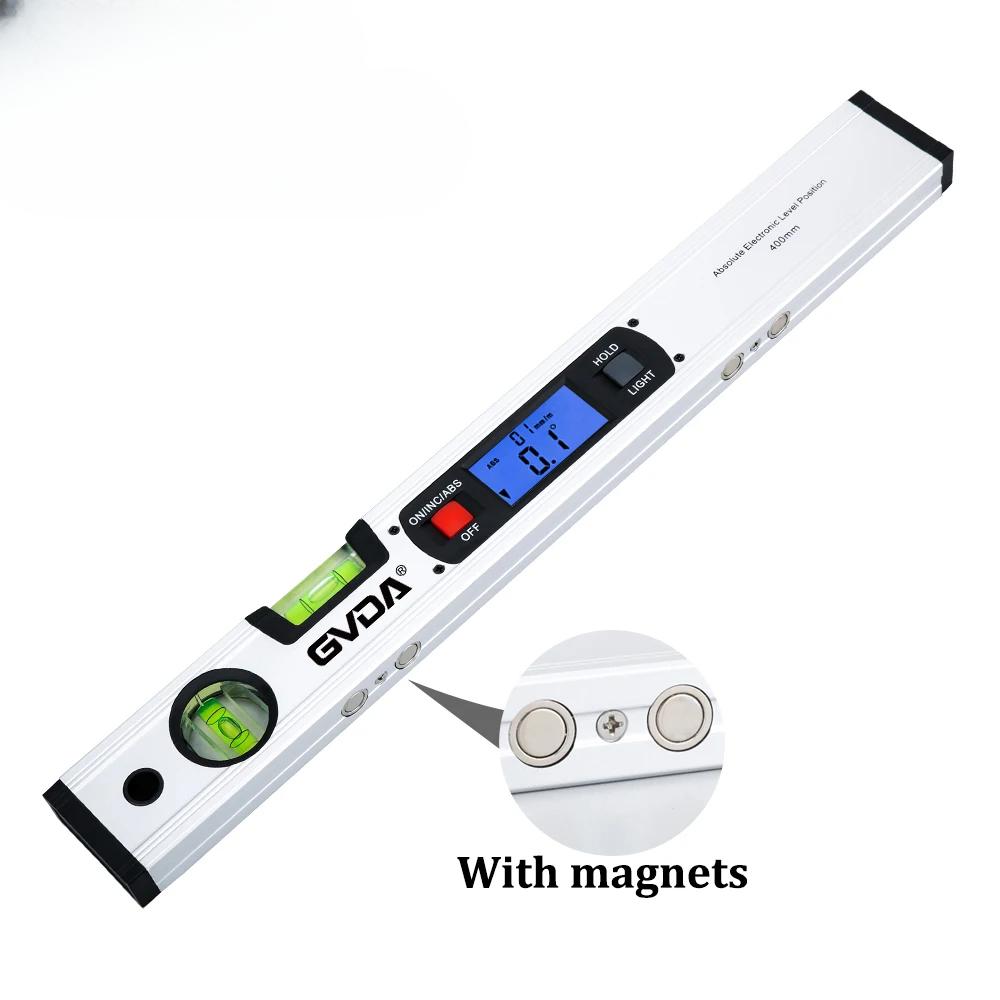

Digital Magnetic level 360 degree Protractor Angle Finder Aluminum 400mm Electronic Inclinometer Ruler with LED Display
GVDA digital level measure all angles in either 360°range or four 90°quadrants. It can display both degree and slope .
have two versions--with magnets on the bottom and without magnets. Display is always in upright position which best specially when working overhead. Not only this instrument can measure the horizontal and vertical surface,
it also can measure the angles of all slopes rise & fall.
Product Features
GVDA New arrive Digital Spirit Level has following features:
1. Pinpoint Precision: High accuracy of 0.05 degrees at 0° and 90° 0.1° at all other angles. and resolution of 0.05 in degrees.
2. Durable and Longevity: This magnetic digital level is IP67 rated,dustproof,waterproof.
3. 360°LED Display: Large LED display easy to read out the digital,and with function allows freezing display for easy reading.
4. Energe Save: Auto shut down for saving energy,prolong the using time for the battery and level.
5. Magnet Base: With Magnet on the button,convenience for angle finder and record,free hands when necessory.
Technical Details
Brand Name
GVDA
Name
Digtial Spirit Level
Model No.
GD-H400M / GD-Y400M
Material
Aluminum Alloy
Blacklight
Green
Working current :
< 100µA
Measuring Unit:
°, ‰, in/ft
Work temperature :
-10℃ (14℉) to 50℃(122℉)
Measuring Range
4 x 90° (0~360°)
Work humidity :
≤85% RH
Resolution :
0.1°
Magnet (optional)
4 built-in on base plate
Accuracy
0~90°≤0.1°; the rest ≤0.2°
Power Supply
2x1.5V AAA battery (not include)
Product Weight/Size
204g / 200x58x25mm
Package Weight/Size
360g / 220x75x45mm

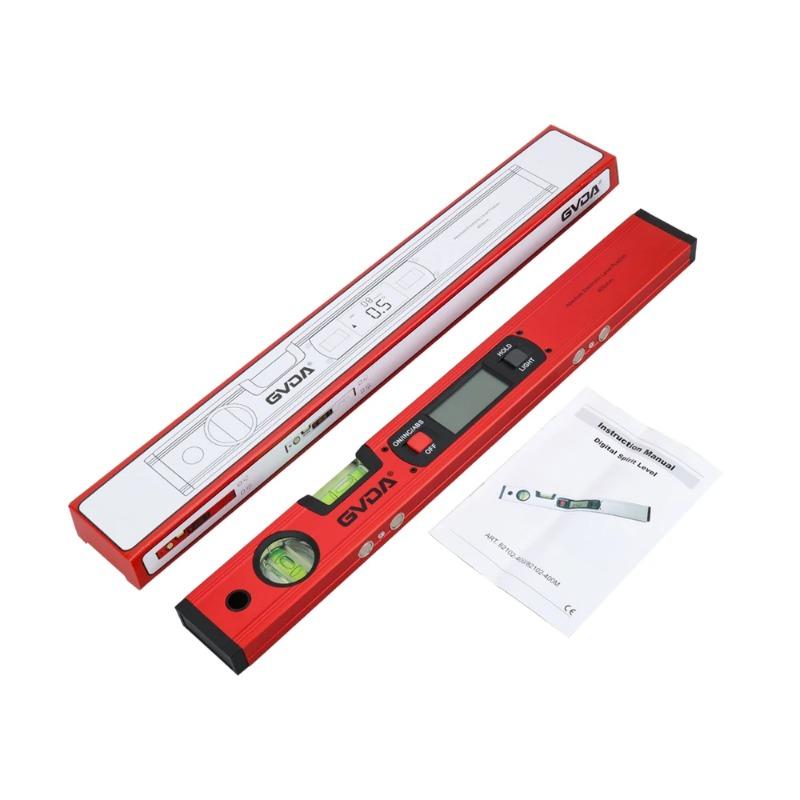

Packing Contents
1pc digital level /1pc manual /1pc cloth bag
Product Photos
Features:
As a common measuring tool, the horizontal scale plays an important role in construction, decoration and mechanical manufacturing.
It is widely praised for its simple design and precise measurement functions.
The body of the level ruler is made of a durable material to ensure the stability of the measurement.
Whether it is installing doors and windows, laying floors, or debugging mechanical equipment, it is an indispensable right-hand assistant.
Help staff to quickly and accurately complete level measurements to ensure the accuracy and quality of the project.
