Feature:
1. Versatile 3 in 1 Functionality: Combines a light power meter, visual fault locator (VFL), and LED flashlight. Powered by a 3.7V rechargeable li battery with TYPE C charging capability.
2. Wide Measurement Range: Covers 10 standard wavelengths including 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm. Testing range from 50 to +26dbm for comprehensive performance evaluation.
3. Convenient Backlit Display: Features a backlit display for easy visibility in dim environments. Automatically shuts off after 10 minutes of inactivity for power saving functionality.
4. Extensive Data Storage: Fiber optic tester is capable of storing up to 500 sets of data for convenient record keeping and comparison between test results.
5. Accurate Power Testing: Boasts a low testing error of less than 0.2dB for accurate power measurements. Users can independently calibrate data for personalized accuracy.
Specification:
Item Type: Optical Power Meter
Material: ABS
Power Testing Range: 50 to +26dbm
Probe Type: for InGaAs
Wavelength Range: 850 to 1650nm
Testing Accuracy: +0.2dB
Standard Wavelength (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
Display Resolution:
Linear Display: 0.1percent
Logarithmic Display: 0.01dBm
Operating Temperature ( celsius ): 10 to +60 celsius
Storage Temperature ( celsius ): 25 to +70 celsius
Auto Power Off Time: 10 minutes
Red Light Source Testing Distance: 15mW
Output Wavelength: 650nm
Size: Approx. 180x89x42mm 7.09x3.50x1.65in
Power Supply: 3.7V Rechargeable Li Battery x 1 Capacity 650mah (with built in battery)
.
Package List:

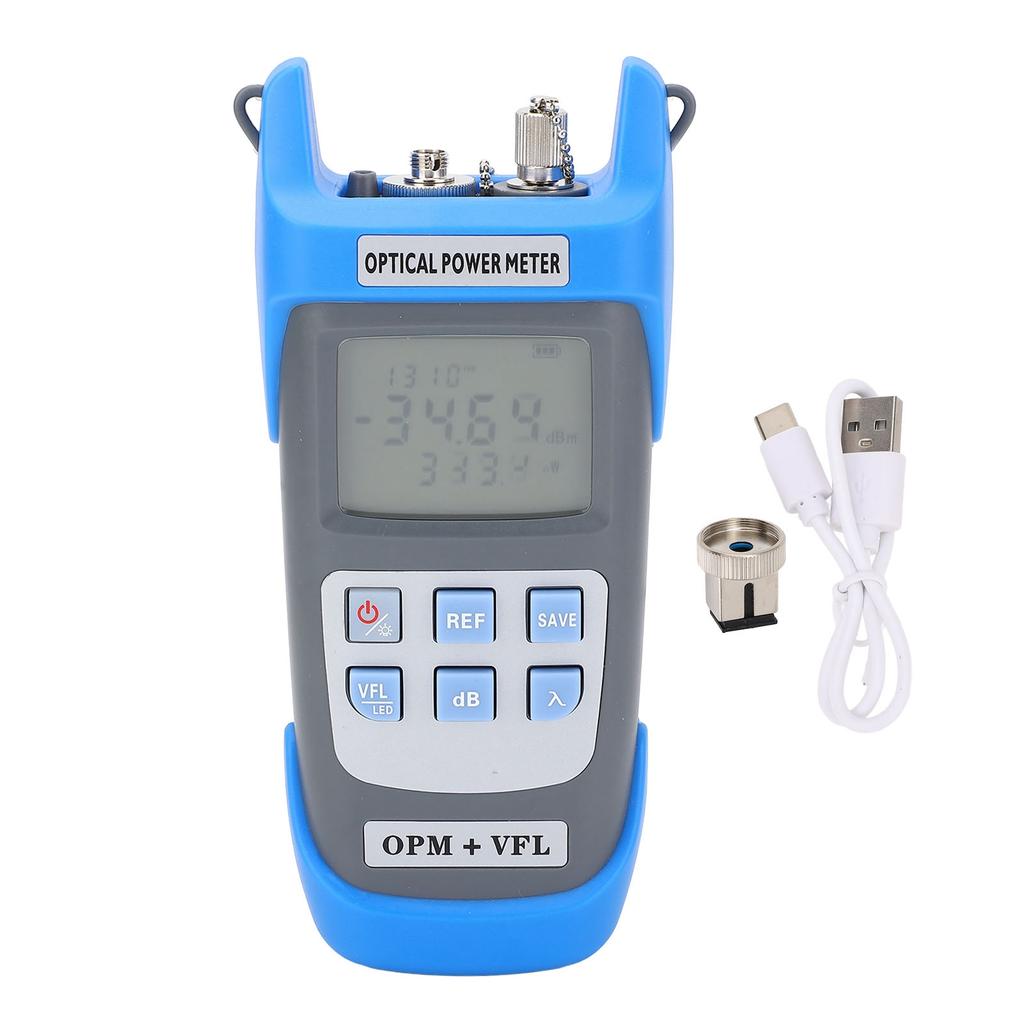

1 x Optical Power Meter
1 x FC Adapter
1 x USB C Charging Cable
1 x User ManualVersatile 3 in 1 Functionality: Combines a light power meter, visual fault locator (VFL), and LED flashlight. Powered by a 3.7V rechargeable li battery with TYPE C charging capability.
Wide Measurement Range: Covers 10 standard wavelengths including 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm. Testing range from 50 to +26dbm for comprehensive performance evaluation.
Convenient Backlit Display: Features a backlit display for easy visibility in dim environments. Automatically shuts off after 10 minutes of inactivity for power saving functionality.
Extensive Data Storage: Fiber optic tester is capable of storing up to 500 sets of data for convenient record keeping and comparison between test results.
Accurate Power Testing: Boasts a low testing error of less than 0.2dB for accurate power measurements. Users can independently calibrate data for personalized accuracy.
