This product is an example of a combination of a 400KHz oscilloscope and a multifunction multimeter. It can easily handle measurement in various fields, including testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.
Features:
Versatility & Digital Display: Combining a 400KHz oscilloscope with a multifunction multimeter, this instrument provides a comprehensive diagnostic toolset for automotive, electronics, and industrial applications. Its 135*240 highresolution color display ensures high visualization and numerical readings.?
Auto Capture Function & Indepth Measurement Capabilities: The onebutton autocapture function simplifies operation by automatically capturing waveforms, suitable for quick analysis and troubleshooting. This unit offers multiple measurement functions. It supports voltage measurement, resistance measurement, duty cycle measurement, and onoff measurement.

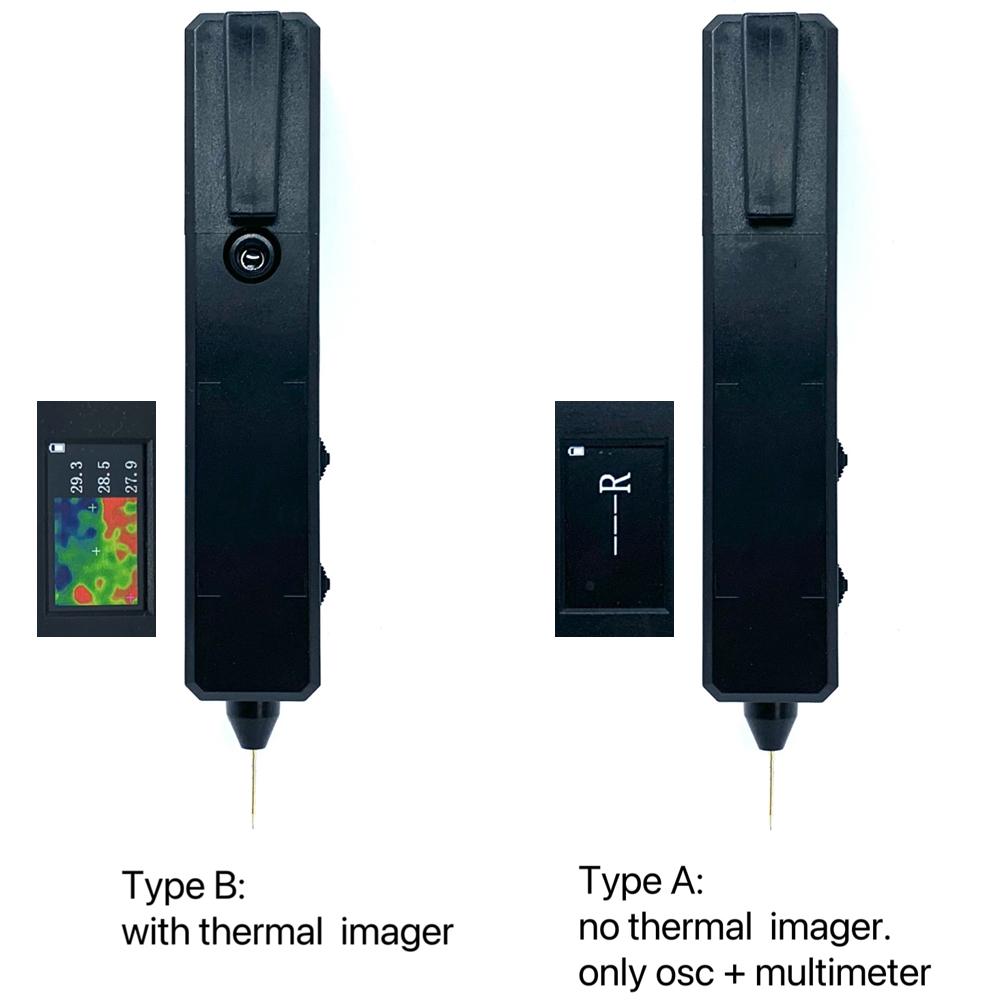

Optional Version: Two versions are available that you can choose between with a thermal imager function and without with a thermal imager function according to your demands. The with thermal imager function version support the measure and display of MIDDLEMAXIMUMMINIMUM?temperature.
Enhanced User Experience: It is designed with enhanced comfort and high efficiency. The compact size and lightweight design make it highly portable and provide safer operation in various environments. Comes with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
Comprehensive Safety & Wide Applications: It can easily handle measurement in various fields, including testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.
Specifications:
Name: Oscilloscope Multimeter
Material: ABS
Version: common version, thermal imager version (optional)
Battery: 1 * 200mAh rechargeable battery (included)
Display: 1.14inch 135*240 TFT
Power port: USB TypeC, 5V1A
Operate humidity: less than 80percent
Operate temperature : 0 celsius 50 celsius
Oscilloscope:
Frequency measure accuracy: +1percent
Onebutton AUTO display waveform
Sampling Rate: 2MSas
Bandwidth: 400KHz
Storage depth: 4Kbit
Trigger mode: Auto
Trigger edges: Falling edges
Coupling mode: Direct Current
Maximum test voltage: 24V
Vertical sensitivity: 50 mVdiv10 Vdiv
Horizontal time base ranges: 10usdiv200msdiv
Voltage measure:
Measure accuracy: +1.5percent or +0.15V
Maximum input voltage: 24V
Minimum resolution: 0.1V
Resistance measure
Measure ranges: 10Q~5M
Measure accuracy: +2percent
Diode measure: yes
Onoff measure: yes

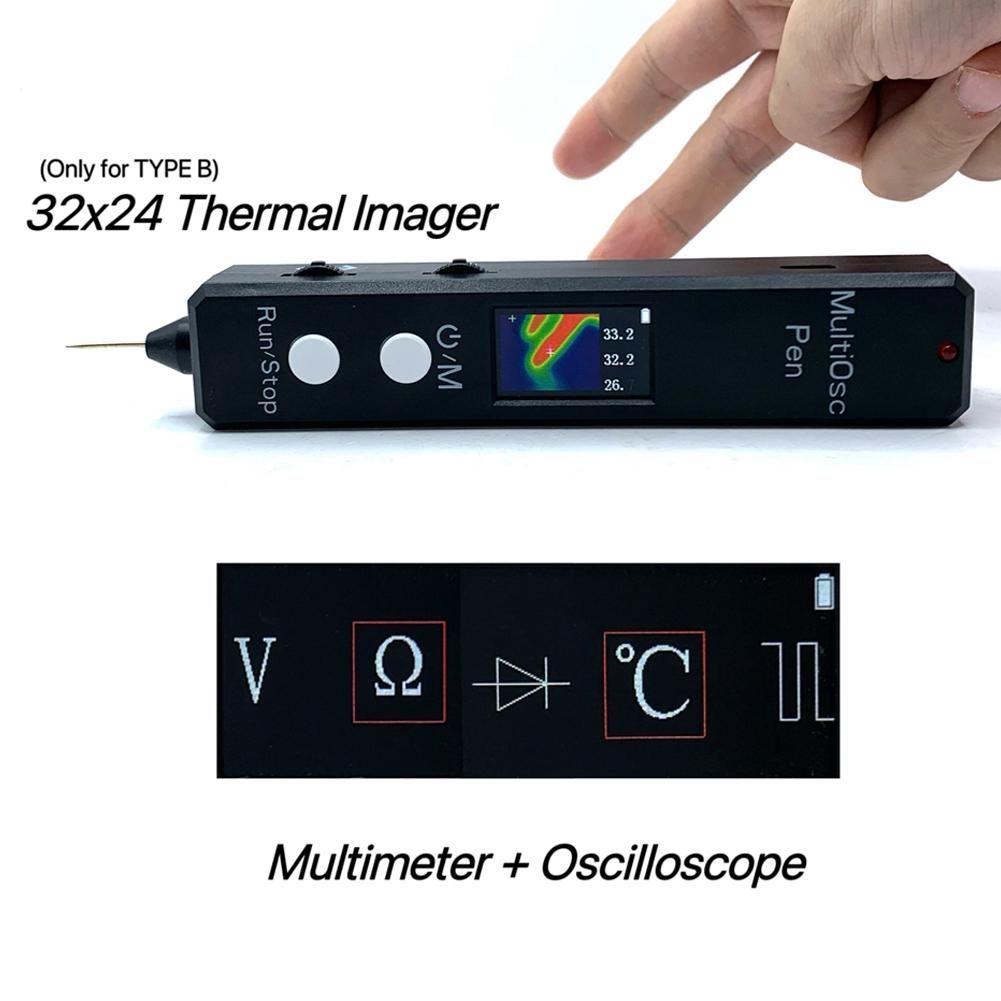

Thermal Imager Version:
Temperature measurement: 40 celsius to 300 celsius
Accuracy: 3+ celsius (Middle point, 0100 celsius )
Display: MIDDLEMAXIMUMMINIMUM?temperature
Resolution: 32*24
Refresh rate: 4HZ
FOV: 55 degrees *35 degrees
Item size: 160 * 27 * 26mm 6.30 * 1.06 * 1.02in
Item weight: 140g 4.94ounce
Package size: 180 * 50 * 50mm 7.09 * 1.97 * 1.97in
Package weight: 150g 5.29ounce
Packing List:
1 * Oscilloscope Multimeter
1 * Test Attachment
1 * TypeC Cable
