This is a kind of fine quality spot welding machine, which is made of aluminum alloy material, with anodic oxidation surface, wear resistant and beautiful. Mainly used in the welding of nickel sheet of cylindrical battery, NI-MH battery, nickel cadmium battery like 18650 and etc.. It can welding hundreds of welding points on commonly used nickel-plated sheets within 0.1mm-0.12mm. You can have a try.?
Features:
Made of aluminum alloy material, with anodic oxidation surface, wear resistant and beautiful.
It can welding hundreds of welding points on commonly used nickel-plated sheets within 0.1mm-0.12mm.
6 gears of output power adjustable, welding more accurate.
Output gears indicator light(red), the number of indicator light corresponding the output gears.
Equipped with electricity indicator light(blue), different numbers to shows different electric quantity, 1 light(5-25%,flash less than 5%), 2 lights(25-50%), 3 lights(50-75%), 4 lights(75-100%).
Automatic mode and manual mode adjustable, with output mode indicator light, automatic mode-left yellow light turn on, manual mode-right yellow light turn on.
Type-C interface 2A input, 6700mAh spot welding machine can be fully charge within 3 hours.

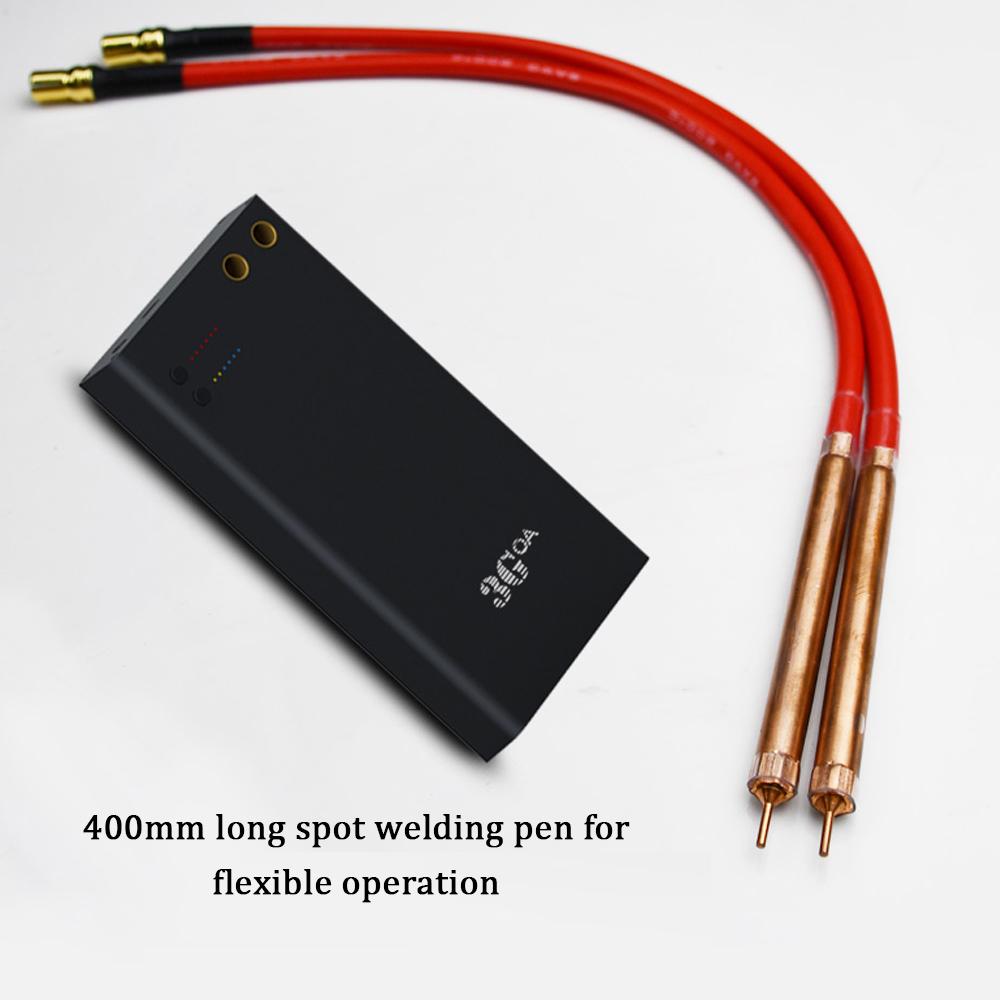

400mm long spot welding pen for flexible operation.
Mainly used in the welding of nickel sheet of cylindrical battery, NI-MH battery, nickel cadmium battery like 18650 and etc..
Gold-plate terminal welding pen, with fine conductivity and low contact resistance, quickly detachment and easy carring.
2mm thicken pure copper strip, supperlow internal resistance to increase overcurrent capability.
Built-in high-rate polymer power cell, the maximum output current is up to 650A, and it can continuously weld thousands of points after being fully charged.
Temperature control probe for temperature control protections, automatically shutoff when the temperature is higher than 60 celsius .
Specifications:
Name: Spot Welding Machine
Battery: 2 * 5V, 6500mAh lithium battery (included)
Gears: 1-6 gears
Input interface: Type-C
Input current: 5V, 2A
Welding output voltage: 4.2V (max)
Welding output current: 650A (max)
Design welding current: 1000A
Welding thickness: 0.1-0.12mm
Item size: 178 * 87 * 27mm / 7.01 * 3.43 * 1.06in
Item weight:
Spot welding machine: 400g / 14.11ounce
Welding pem: 100g / 3.53ounce
Package size: 200 * 100 * 50mm / 7.87 * 3.94 * 1.97in
Package weight: 550g / 19.40ounce
Packing List:
1 * Spot Welding Machine
2 * Spot Welding Pen
